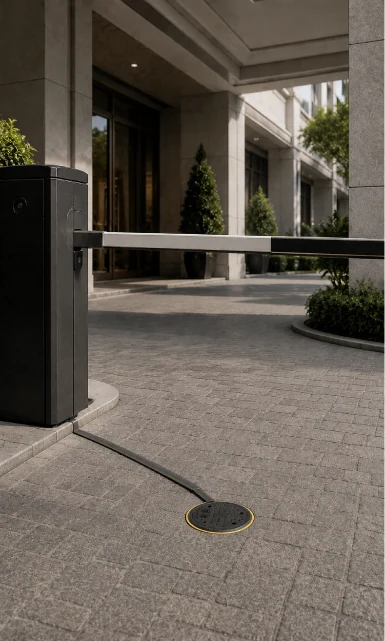

Keep entrances clean
In-ground detection reduces exposed hardware at residential or premium access points.
Protect equipment below surface
Preserve entrance appearance
P05 IN-GROUND SMART ENTRANCE BARRIER DETECTOR
IN-GROUND SMART ENTRANCEBARRIER DETECTOR
Built for entrances where appearance, hardware protection, and long-term serviceability matter.
IN-GROUND SMART ENTRANCEBARRIER DETECTOR
Built for entrances where appearance, hardware protection, and long-term serviceability matter.
High-traffic entrances need consistent detection when vehicles follow closely, vary by type, or operate all day.
01 / Sensing Node
01
Install the detector flush with the lane surface
Install P05 in the entrance lane with PVC conduit routing and cement fixing so the detector surface remains level with the surrounding pavement.
02 / Connectivity & Platform
02
Detect vehicle passage with two sensing methods
As a vehicle enters the detection area, P05 combines magnetic sensing with infrared triangulation to support consistent passage detection.
03
Send the event to the entrance control box
P05 provides one standard dry-contact output set (NO / NC), allowing the vehicle event to be used as an input for the existing barrier control box and gate-opening logic.
03 / Integration & Action
04
Support entrance control and vehicle counting
The confirmed detection event can support barrier triggering, entry and exit counting, and tailgating detection assistance according to the lane configuration and control logic.
05
Add authorized access or platform integration
When required, the entrance workflow can be extended with BLE-based authorized access using an OBU or mobile app, plus IoT View or compatible backend integration.
in-ground smart entrance barrier detection
P05measuresvehiclepassageandgateeventsusingflush-mounteddualsensorstohelpoperatorsautomategateworkflows.
1
Install the detector flush with the lane surface
Install P05 in the entrance lane with PVC conduit routing and cement fixing so the detector surface remains level with the surrounding pavement.
2
Detect vehicle passage with two sensing methods
As a vehicle enters the detection area, P05 combines magnetic sensing with infrared triangulation to support consistent passage detection.
3
Send the event to the entrance control box
P05 provides one standard dry-contact output set (NO / NC), allowing the vehicle event to be used as an input for the existing barrier control box and gate-opening logic.
4
Support entrance control and vehicle counting
The confirmed detection event can support barrier triggering, entry and exit counting, and tailgating detection assistance according to the lane configuration and control logic.
5
Add authorized access or platform integration
When required, the entrance workflow can be extended with BLE-based authorized access using an OBU or mobile app, plus IoT View or compatible backend integration.
07:56
LTE41%
Bay Monitor
Shanhua Dist...
S
Occupancy
62%
62%
Regular
41
Error
9
Signal
70%
Vehicle
Regular
Node
Error
5006-Liantan Road
00270%
003-170%
00630%
00890%
01030%
MapRoadBaySignal
Flush-Mount Access Intelligence
Deliver reliable vehicle detection for entry barriers with minimal pavement disruption
P05 transmits vehicle detection events, barrier trigger signals, and access authorization data to IoT View or compatible backend systems, supporting controlled entry workflows, vehicle counting, and access audit records.
This is where operators review threshold alerts, trace historical records, and turn distributed field readings into a single operational view.
INSIGHTS
Access Intelligence
Build entrances into pavement
Plan flush-mounted detection where appearance, protection, and maintenance matter.

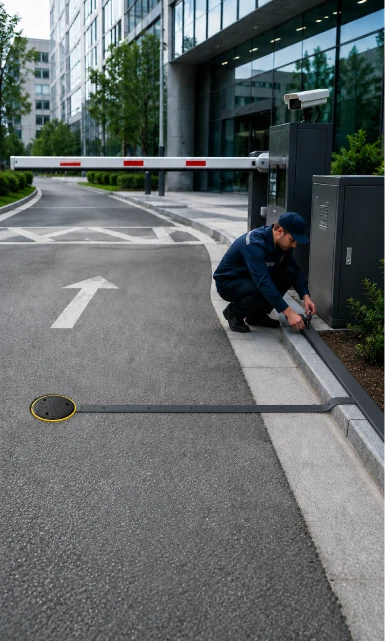

Plan service access
Pre-routed conduit helps future sensor or cable replacement follow the same route.
Reduce re-installation scope
Limit lane downtime during service

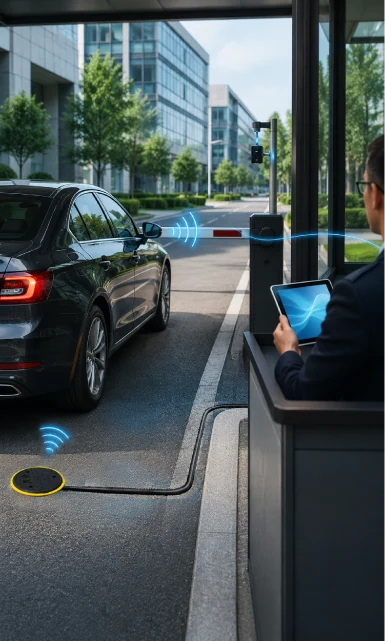

Add authorized access
Vehicle detection and BLE authorization can support controlled entrance workflows.
Connect barrier trigger signals
Send access records to platforms
KEY ADVANTAGES
Key Advantages
Select an advantage to see how the product supports practical, repeatable field deployment.
For commercial, residential, campus, and fixed parking entrances, P05 becomes part of the lane long term, reducing exposed equipment concerns around appearance, cleaning, cable exposure, and on-site acceptance.
SPECIFICATIONS
SPECIFICATIONS
Product Name
P05 In-ground Smart Entrance Barrier Detector
Installation
In-ground, PVC conduit routing, flush-mounted surface after installation
Detection
Magnetic sensing + IR triangulation (dual detection)
Output
One dry-contact set (NO / NC)
Power
DC 12V–24V / 40mA typical
Protection
IP68
Load Capacity
10 tonnes
Cable Length
5 m
Operating Temperature
-10°C to +60°C
Expansion
BLE 2.4GHz / BLE OTA for authorized access integration
Platform Integration
IoT View management platform or existing backend system
Get Started / Project Evaluation
Ready to evaluate P05?
Make entrance detection part of the pavement — not an exposed maintenance burden. If you are evaluating a sensing upgrade for a parking facility, residential community, commercial building, or enterprise campus entrance, NHR can help assess whether P05 fits your site conditions and plan sensor configuration, wiring integration, BLE authorized access, and platform data integration.
