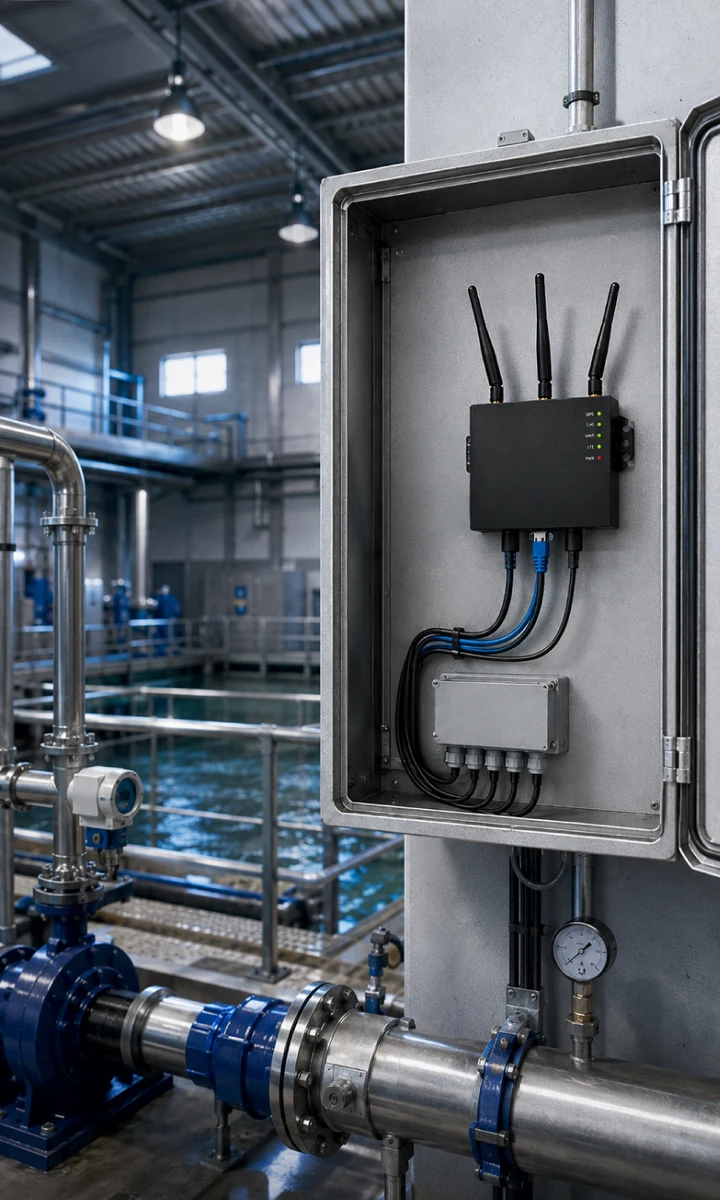

Start LoRaWAN locally
G09 gives projects a field gateway layer for distributed LoRaWAN sensor networks.
8-channel LoRaWAN gateway
Built-in Network Server Lite
G09 INDUSTRIAL LORAWAN GATEWAY
INDUSTRIAL LORAWAN GATEWAY
Connect LoRaWAN field data to IoT platforms and backend systems faster.
INDUSTRIAL LORAWAN GATEWAY
Connect LoRaWAN field data to IoT platforms and backend systems faster.
IoT projects often fail at data backhaul, not sensing.
01 / Sensing Node
01
--LoRaWAN End Devices
Parking sensors, water level sensors, environmental sensors, industrial monitoring nodes, or other LoRaWAN end devices send field data to G09 through LoRaWAN packets.
02 / Transmission & Logic
02
--G09 LoRaWAN Gateway
G09 receives LoRaWAN packets and forwards data based on the selected project architecture --including built-in Network Server Lite, external LoRaWAN Network Server, or MQTT broker.
03
--Ethernet / 4G LTE Backhaul
Depending on site conditions, G09 sends data to backend systems through Ethernet or 4G LTE, reducing field connectivity constraints.
03 / Application & Scale
04
--IoT Platform / Backend System
Data is delivered to IoT platforms, monitoring dashboards, alert systems, data middleware, or third-party applications for operational monitoring, maintenance, anomaly detection, and decision support.
multi-protocol industrial iot gateway
G09coordinatesdistributedfieldsensorsusingmulti-bandLoRaWANandcellularconnectivitytohelpoperatorscollecttelemetrydataacrossruggedenvironments.
1
LoRaWAN End Devices
Parking sensors, water level sensors, environmental sensors, industrial monitoring nodes, or other LoRaWAN end devices send field data to G09 through LoRaWAN packets.
2
G09 LoRaWAN Gateway
G09 receives LoRaWAN packets and forwards data based on the selected project architecture --including built-in Network Server Lite, external LoRaWAN Network Server, or MQTT broker.
3
Ethernet / 4G LTE Backhaul
Depending on site conditions, G09 sends data to backend systems through Ethernet or 4G LTE, reducing field connectivity constraints.
4
IoT Platform / Backend System
Data is delivered to IoT platforms, monitoring dashboards, alert systems, data middleware, or third-party applications for operational monitoring, maintenance, anomaly detection, and decision support.
07:56
LTE41%
Dashboard
LogoutSettingsMonitorDocsAudit
Network Gateway Intelligence
Bridge distributed LoRaWAN field devices to cloud management platforms
G09 aggregates uplink data from connected LoRaWAN sensors and forwards device status, signal quality, and event records to IoT View or compatible backend systems, providing centralized gateway and network visibility.
This is where operators review threshold alerts, trace historical records, and turn distributed field readings into a single operational view.
INSIGHTS
Integration Intelligence
Bridge field data faster
Plan how LoRaWAN devices reach platforms through gateway, backhaul, and MQTT decisions.

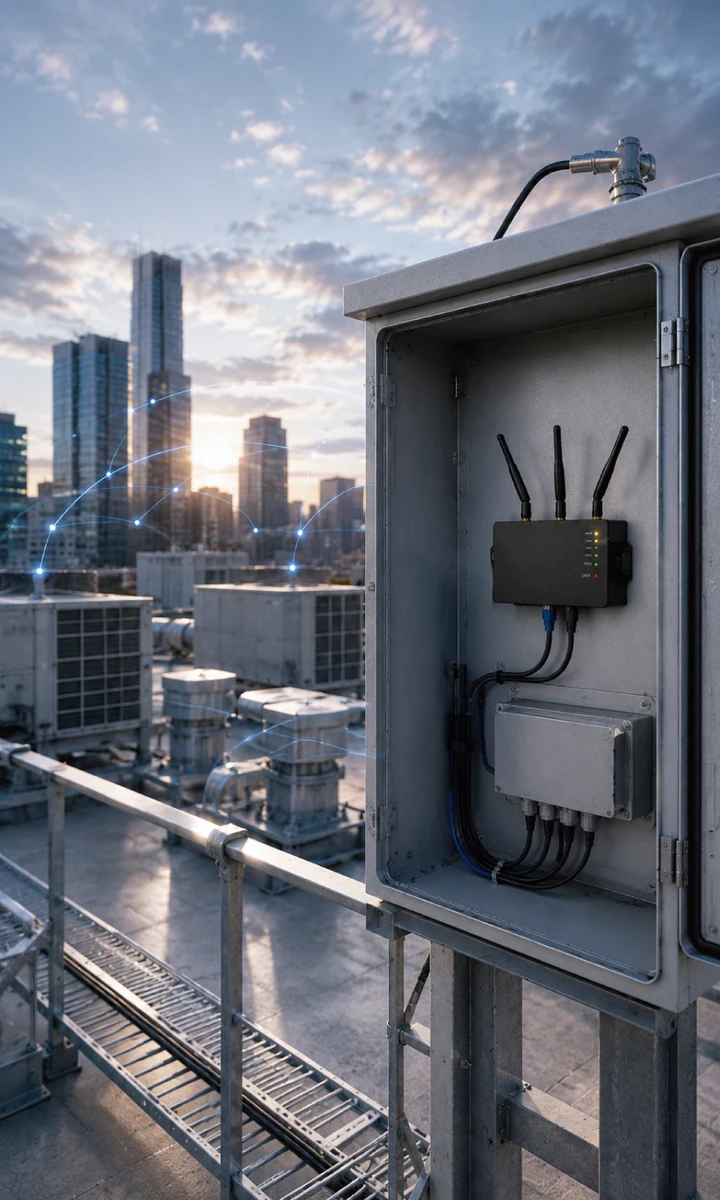

Forward data by MQTT
MQTT bridge support helps connect field packets to dashboards and customer systems.
Use broker or publisher functions
Connect to IoT middleware

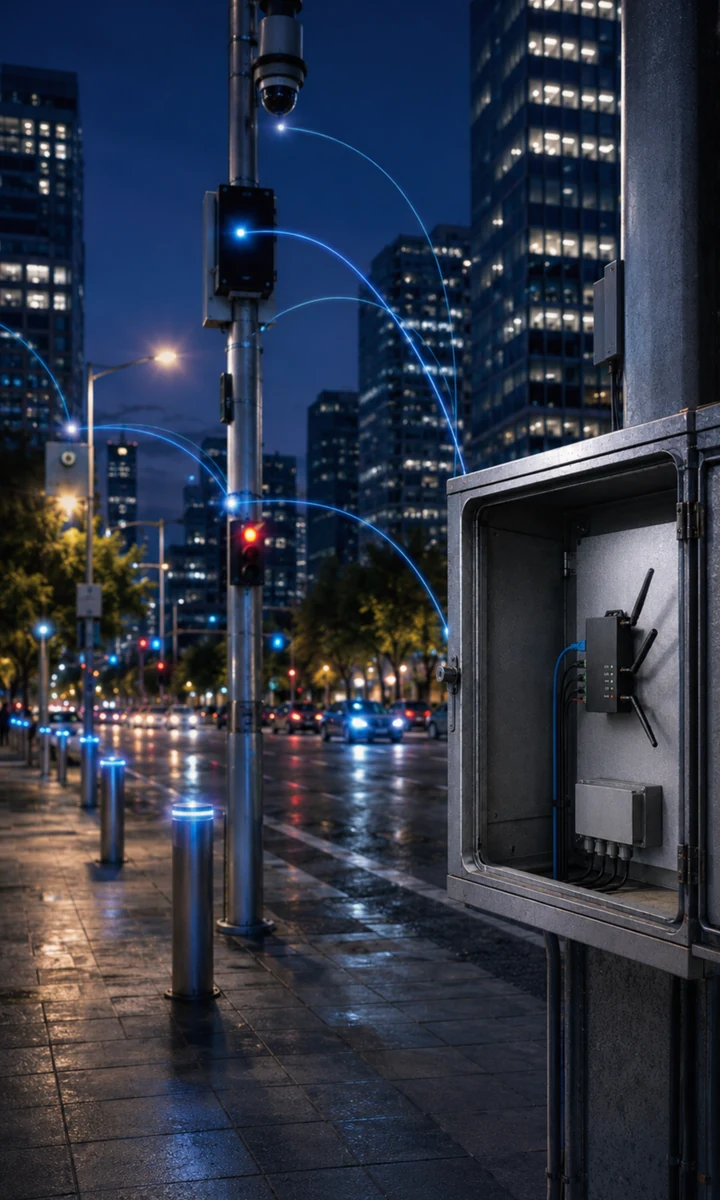

Choose wired or cellular
Ethernet and 4G LTE options help teams adapt to cabinet, remote, or temporary sites.
Fit protected field enclosures
Support regional frequency plans
KEY ADVANTAGES
Key Advantages
Select an advantage to see how the product supports practical, repeatable field deployment.
G09 receives LoRaWAN field data and forwards it by Ethernet or 4G LTE, creating a stable path from sensors to platforms for smart city, parking, water, industrial, logistics, alerting, analytics, and maintenance workflows.
VERSIONS
Configurations & Versions
Model variants organized by field condition and connection profile.
V01Sensor Variant
G09-9
V02Sensor Variant
G09-8
SPECIFICATIONS
SPECIFICATIONS
Category
Specification
LoRa Channels
8 concurrent channels
LoRa Module
SX1302 LoRaWAN Gateway module
Frequency Bands
US915, AU915, AS923, EU868, IN865, RU864
Sensitivity
-125 dBm @ 125K / SF7; -139 dBm @ 125K / SF12
TX Power
Max. 27 dBm
Backhaul
Ethernet; 4G LTE Cat 4
Wi-Fi
IEEE 802.11 2.4G b/g/n, AP mode for settings
Ethernet
10 / 100 Mbps RJ45 x 1
SIM Card
Nano SIM socket x 1
Protocols
TCP/IP, UDP, MQTT, Semtech UDP Packet Forwarder
Network
DHCP, Static IP, DHCP Server
Power Input
DC-Jack or T-Block, 9--2V / 2A
Operating Temperature
-20°C ~ +70°C
Storage Temperature
-30°C ~ +80°C
Relative Humidity
5%--5%, non-condensing
FAQ
FAQ
Get Started / Project Evaluation
Ready to evaluate G09?
Planning a LoRaWAN sensing network? NHR can help you evaluate gateway placement, sensor quantity, frequency plan, backhaul method, and backend integration requirements to build a practical LoRaWAN and IoT platform architecture. Choose the next step based on your project role:
