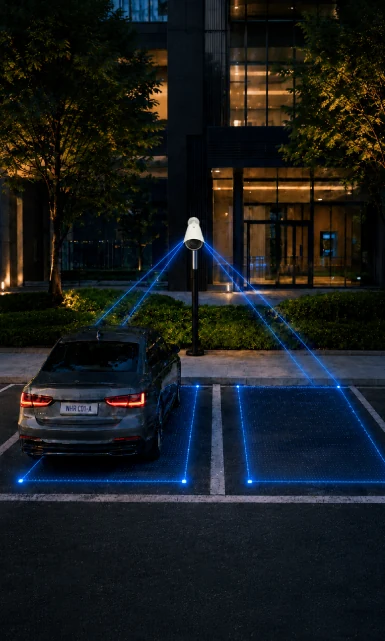

Fit low-pole sites
Dual-bay coverage helps reduce device density where field work must stay manageable.
Confirm bay geometry and clearance
Check wheel stops and obstructions
C01-A AIoT EDGE-ANALYTICS CAMERA
AIoT EDGE-ANALYTICS CAMERA
Dual-bay coverage, low-pole deployment, and still-image evidence for curbside, outdoor, EV, and reserved parking spaces.
AIoT EDGE-ANALYTICS CAMERA
Dual-bay coverage, low-pole deployment, and still-image evidence for curbside, outdoor, EV, and reserved parking spaces.
Parking events need proof, not status alone.
01 / Sensing Node
01
Installation
Mount for single- or dual-bay monitoring, then tune height and angle to the site.
02 / Connectivity & Platform
02
Edge AI Judgment
On-device AI evaluates occupancy events without relying on continuous backend video analysis.
03
Event Trigger
Vehicle entry, exit, or defined events can generate event data and still-image evidence.
03 / Integration & Action
04
Backend Integration
Send event outputs to IoT View or project backends for review, billing, and exception workflows.
05
Workflow Expansion
Extend into EV management, reserved bays, member validation, or third-party integrations as needed.
ai edge parking & curbside analytics
C01-Ameasuresvehicleparkingeventsandtrafficflowsusingon-cameraedgeAItohelpmunicipalitiesoptimizecurbsideturnarounds.
1
Installation
Mount for single- or dual-bay monitoring, then tune height and angle to the site.
2
Edge AI Judgment
On-device AI evaluates occupancy events without relying on continuous backend video analysis.
3
Event Trigger
Vehicle entry, exit, or defined events can generate event data and still-image evidence.
4
Backend Integration
Send event outputs to IoT View or project backends for review, billing, and exception workflows.
5
Workflow Expansion
Extend into EV management, reserved bays, member validation, or third-party integrations as needed.
07:56
LTE41%
Taichung City
Weighted Parking
Taichung
‹›2.79mm
R407
StatusDistributedLPR
IMEI: 353326440552794
PhotoPlateEntry / Exit
EBW0172
2026-06-26 01:03:05
2026-06-26 01:32:27
EAK7180
2026-06-26 00:23:40
2026-06-26 00:56:09
EAG0673
2026-06-26 00:04:53
2026-06-26 00:05:22
RED2737
2026-06-24 23:18:06
2026-06-25 16:48:47
EBW0172
2026-06-24 22:52:01
2026-06-24 23:12:18
+−
Visual Event Traceability
Connect parking events and still-image evidence to backend workflows
C01-A transmits occupancy events and still-image evidence to IoT View or connected backend systems, supporting billing review, exception handling, EV bay management, and reserved-space auditing.
This is where operators review threshold alerts, trace historical records, and turn distributed field readings into a single operational view.
INSIGHTS
Deployment Intelligence
Plan evidence early
Use C01-A to decide where low-pole visual detection can support parking events and review workflows.
Capture reviewable events
Still-image evidence gives operators a clearer record than status data alone.
Define retention and access rules
Support dispute and exception review

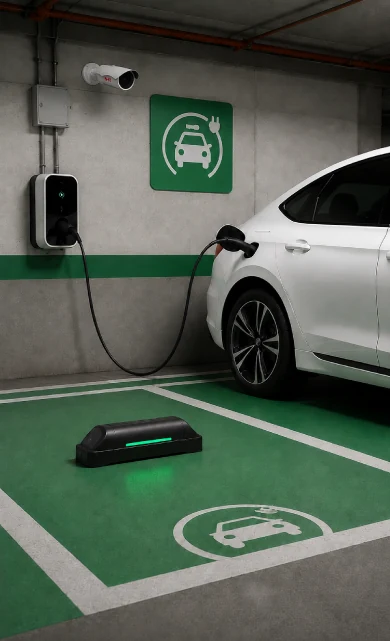

Extend parking use cases
C01-A can support EV bays, reserved spaces, and backend parking workflows.
Scope member or POS integration
Connect events to IoT View
KEY ADVANTAGES
Key Advantages
Select an advantage to see how the product supports practical, repeatable field deployment.
One device can monitor up to two adjacent bays in suitable layouts, reducing device count, installation points, and maintenance touchpoints.
DEPLOYMENTS
Field Index
Deployments
Selected references across installed environments.
VERSIONS
Configurations & Versions
Model variants organized by field condition and connection profile.
V01Ethernet / BLE 5.1
C01-A Standard
DetectionOccupancy detection, still-image evidence, dual-bay coverage
Best FitGeneral outdoor parking lots, commercial parking, curbside spaces
V02Ethernet / BLE 5.1 / LTE-M optional
C01-A with LTE-M Option
DetectionFor sites where fixed-line backhaul is difficult but event and image return are still required
Best FitDistributed outdoor sites, temporary expansions, roadside deployments
V03Based on project scope
C01-A Project Integration Setup
DetectionCan integrate with on-ground sensors, member workflows, payment, EV management, or backend rules
Best FitUngated parking, reserved-bay control, hybrid parking operations
SPECIFICATIONS
SPECIFICATIONS
Installation
Low-pole mounting; can be deployed between two adjacent spaces
Coverage
Up to 2 parking spaces per device
Lens
3.1 mm fixed focus, approx. 100° wide-angle view
Image Capability
1920 × 1080, MJPG
Edge Processing
ARM Cortex M4 + NPU
Connectivity
Ethernet / BLE 5.1, LTE-M optional
Power Input
DC 3.6–4.2V external power
Operating Temperature
-20°C to 75°C
Platform Support
IoT View and backend API integration
Security Option
PUF security protection available by model or project configuration
FAQ
FAQ
Get Started / Project Evaluation
Ready to evaluate C01-A?
Planning curbside spaces, ungated outdoor parking, EV charging bays, or reserved-space management? Share your site type, space count, power, network conditions, and required workflows. NHR can help assess the right C01-A deployment approach.
